48p 48dp black stainless steel 13t-41t 3.175mm Motor Pinion Gear

48p 48dp black stainless steel 13t-41t 3.175mm Motor Pinion Gear

  • For motor shaft diameter: 3.175mm
  • Material:stainless steel
  • Gear Tooth: 13T-41T
  • For 1/10 RC Crawler Car
BASIC INFO
Features:
Made of high quality metal material
Exquisite workmanship and durable in use
48P motor gears for 1/10 RC Crawler Car

Specifications:
Material: Metal
Quantity: 1Pcs
For motor shaft diameter: 3.175mm

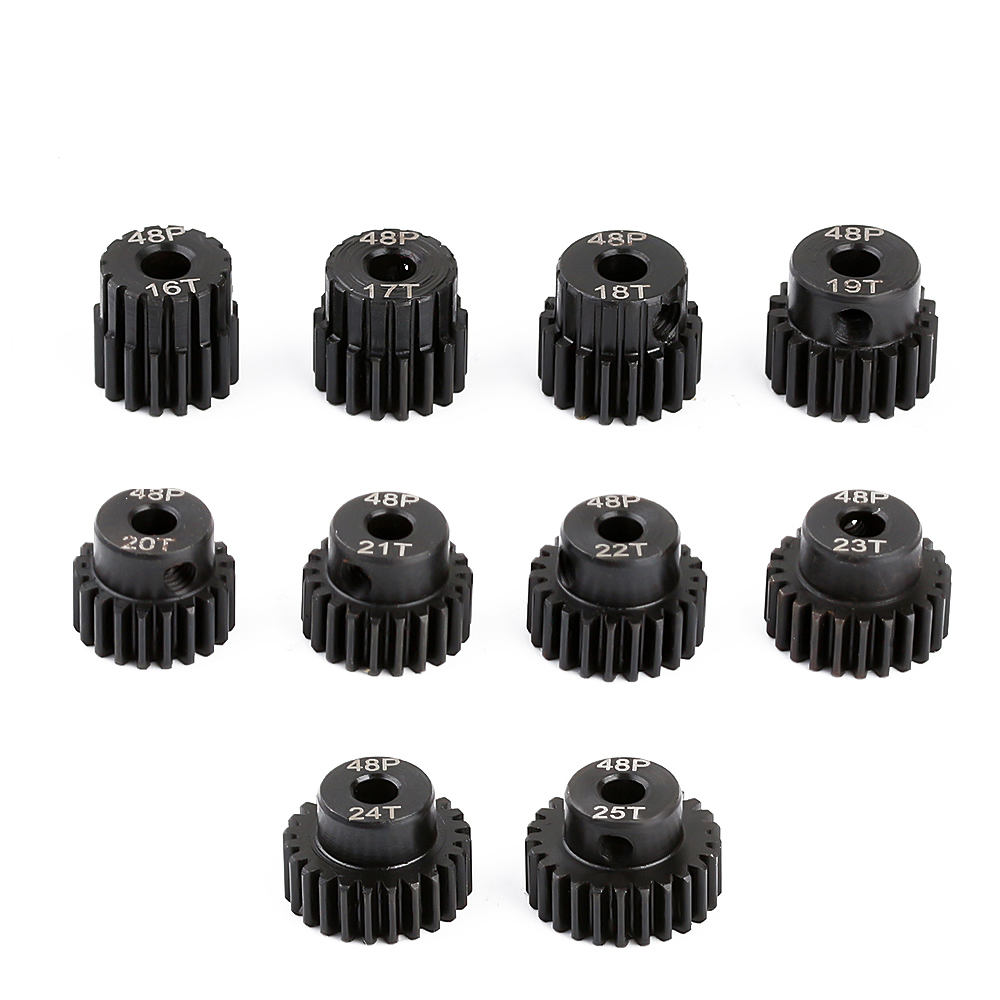

Gear Tooth: 13T/14T/15T/16T/17T/18T/19T/20T/21T/22T/23T/24T/25T/26T/27T/28T/29T/30T/31T/32T/33T/34T/35T/36T/37T/38T/39T/40T/41T

Package List:

1 * 48P Motor Gear    or  10* 48P Motor Gear


The material of 48dp gear is hardware brand steel gear, the inner hole is all positive tolerance 0-0.03, m3 fixed screw hole
Convenient installation and long service life
Hard anodizing of gear surface
Antirust treatment of gear surface
3.175mm shaft brushless motor for 1 / 10 RC model car
T can be any combination, can be single packaging, each gear with a machine screw, transparent tape packaging, hanging our company tag or OEM your logo card head


Item                     T                Spec
11025-3001-02    13T     13T ¢3.175*¢7.95*9mm
11025-3002-02    14T     14T ¢3.175*¢8.48*9mm
11025-3003-02    15T     15T ¢3.175*¢9.01*9mm

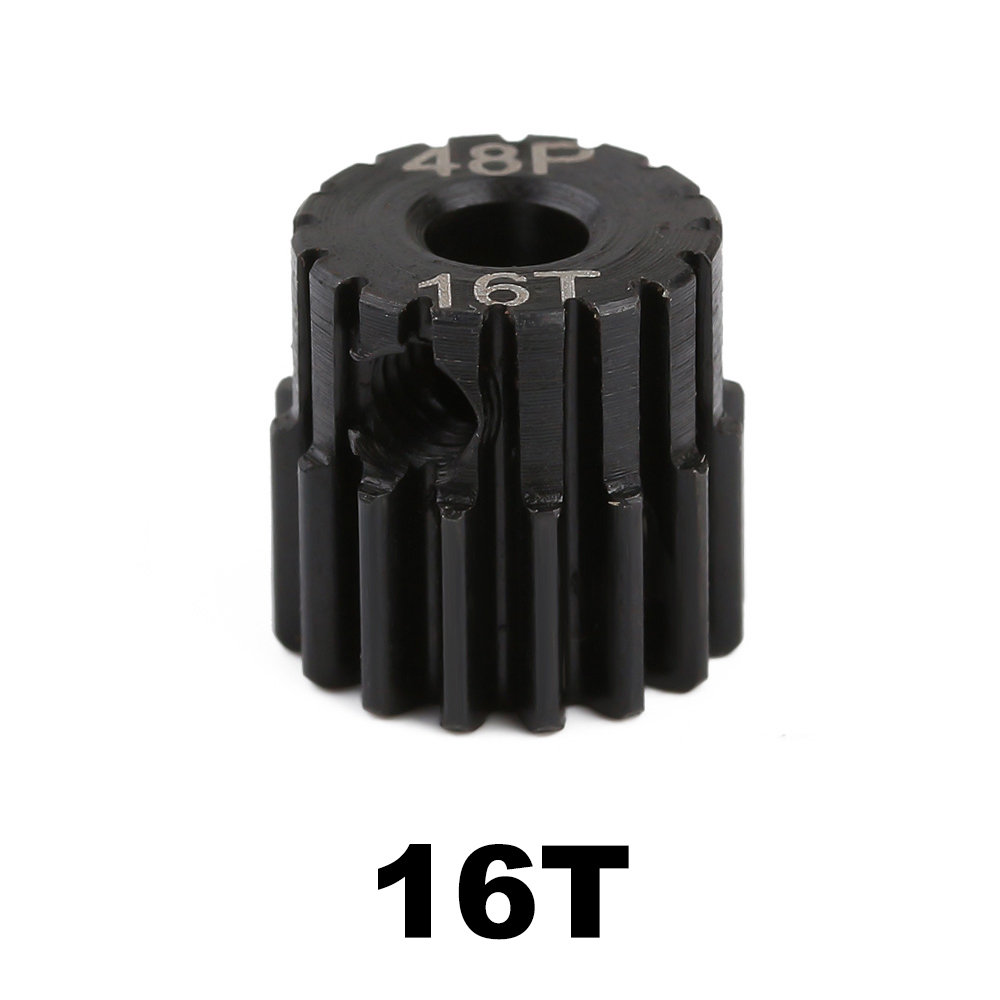

11025-3004-02    16T     16T ¢3.175*¢9.54*9mm
11025-3005-02    17T     17T ¢3.175*¢10.07*9mm
11025-3006-02    18T     18T ¢3.175*¢10.6*9mm
11025-3007-02    19T     19T ¢3.175*¢11.13*9mm
11025-3008-02    20T     20T ¢3.175*¢11.66*9mm
11025-3009-02    21T     21T ¢3.175*¢12.19*9mm
11025-3010-02    22T     22T ¢3.175*¢12.72*9mm
11025-3011-02    23T     23T ¢3.175*¢13.25*9mm
11025-3012-02    24T     24T ¢3.175*¢13.78*9mm

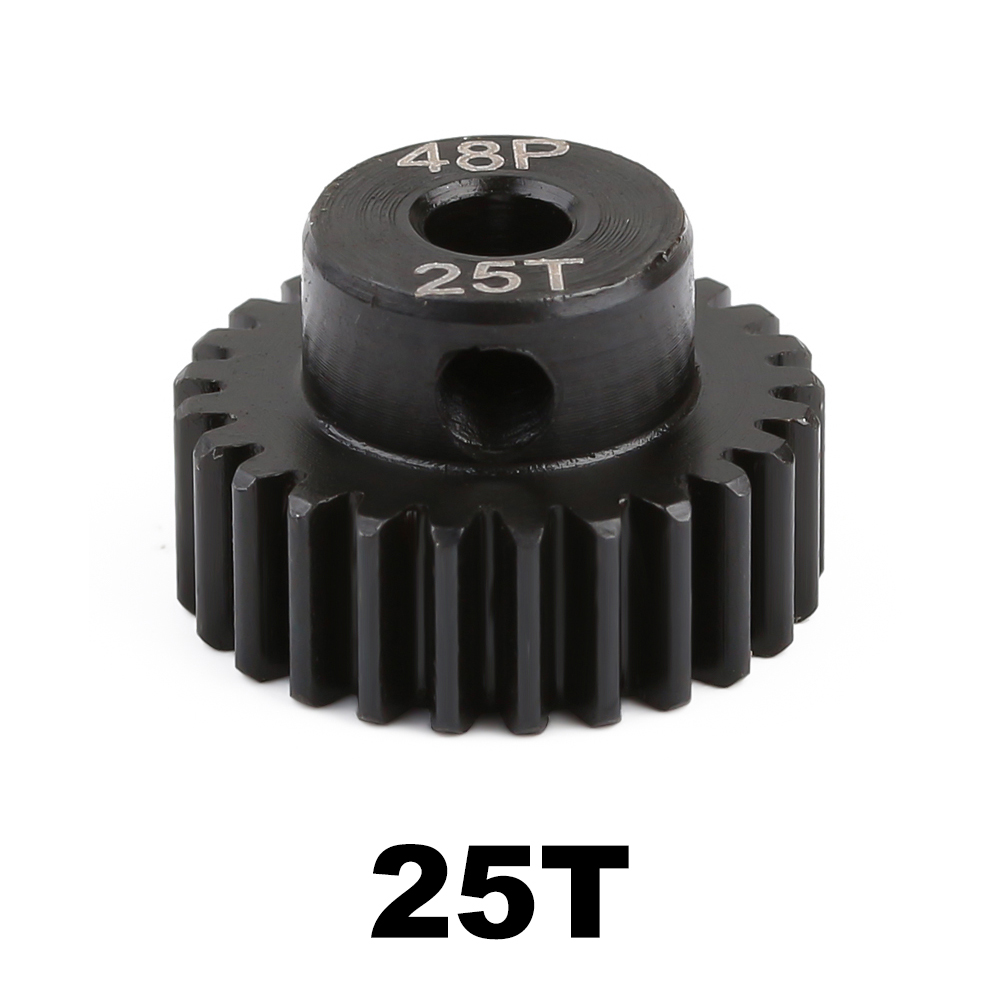

11025-3013-02    25T     25T ¢3.175*¢14.31*9mm
11025-3014-02    26T     26T ¢3.175*¢14.84*9mm
11025-3015-02    27T     27T ¢3.175*¢15.37*9mm
11025-3016-02    28T     28T ¢3.175*¢15.9*9mm
11025-3017-02    29T     29T ¢3.175*¢16.43*9mm
11025-3018-02    30T     30T ¢3.175*¢16.96*9mm
11025-3019-02    31T     31T ¢3.175*¢17.49*9mm
11025-3020-02    32T     32T ¢3.175*¢18.02*9mm
11025-3021-02    33T     33T ¢3.175*¢18.55*9mm
11025-3022-02    34T     34T ¢3.175*¢19.08*9mm
11025-3023-02    35T     35T ¢3.175*¢19.61*9mm
11025-3024-02    36T     36T ¢3.175*¢20.14*9mm
11025-3025-02    37T     37T ¢3.175*¢20.67*9mm
11025-3026-02    38T     38T ¢3.175*¢21.2*9mm
11025-3027-02    39T     39T ¢3.175*¢21.73*9mm
11025-3028-02    40T     40T ¢3.175*¢22.26*9mm
11025-3029-02    41T     41T ¢3.175*¢22.79*9mm
